CLINI5

Having operated in the point of care sector for well over three decades, we listened…

The device

COMPREHENSIVE LIST OF PRIMARY SCREENING ASSAYS

Eighteen assays and ratios covering primary care testing requirements (see below). Testing is performed on whole blood.

SMART QUICK VIEW ASSAY PANEL

Smart testing panel listing all assays on offer at a glance.

YOUR CHOICE: SINGLE TEST OPTION MODE

Need to perform an individual cholesterol, glucose or hemoglobin test? Done. Need to perform up to 5 assays at the same time? Done. The Clini5 provides operators with flexible testing options.

7" HIGH TECH USER-FRIENDLY INTERFACE

Fast track, intuitive interface and communication.

CLEAR ERROR PROMPTS

Enhancing user friendliness providing extra reassurance whilst carrying outprocedures.

ENHANCED ASSISTANCE

Self-diagnostics alert, service prompts and on-line updates are some of the features available.

TRACK CLIENT DATA AND SCREENING TRENDS

Record client data on device with easy access view. Assess screening trends of clients via statistical analysis features. Clini5 stores up to 150.000 client files.

GREATER TESTING FLEXIBILITY

Five cells for greater operator flexibility and rapidity. Up to five assays may be performed at the same time.

The tutorial video

Exclusive tutorial feature in both standard or full tutorial mode. The Clini5 tutorial video is an interactive feature which supports the training process, whether educating existing or new staff on how to perform testing.

In addition the tutorial video is helpful when refresh of staff is required or when on-the-spot access to test procedures is necessary.

The result interface

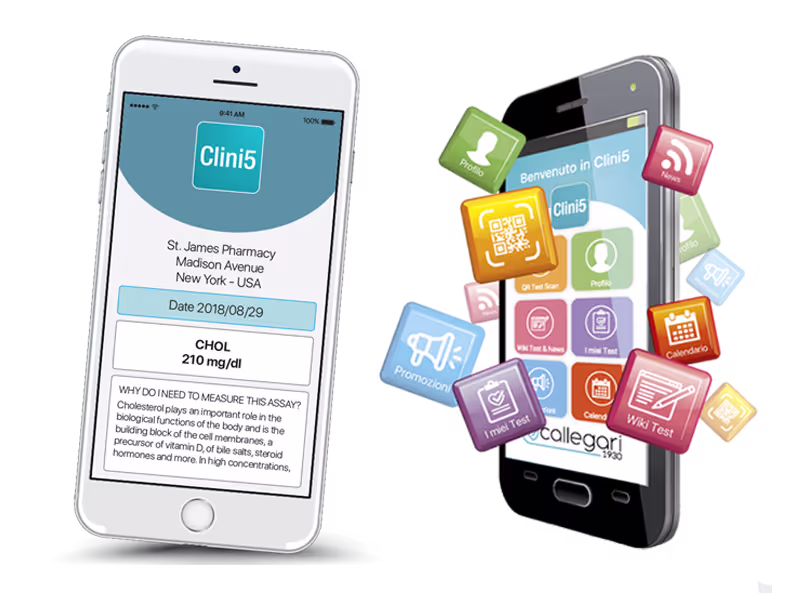

DIGITAL COMMUNICATION OF RESULT

Results are displayed and received on smart-phone delivering instant access to result on behalf of client and storage of the same for future consultation.

Includes overview of why it is important to screen for each assay supporting user education and prompting enhanced self-care.

The Assays

Total cholesterol
HDL cholesterol
LDL cholesterol*
Glucose
Triglycerides
Hemoglobin
Erythrocytes
Hematocrit

Uric Acid
FORT (Free Oxygen Radicals Test)
FORD (Free Oxygen Radicals Defence)
HbA1c
Redox Index***
ALT
AST
AST/ALT***

Cardiac risk assessment**
Dual-test (Cholesterol-Glucose)
* the LDL cholesterol value is calculated according to Friedewald’s formula
** the Cardiac Risk Assessment is calculated in accordance with the American“FRAMINGHAM HEART STUDY” statistical model
*** Calculated value

The Technical Specifications

Measurement principle
Absorbance (Lambert-Beer law)
Number of Reading Cells
5
Dimensions of Reading Cells
Approximately 13x13 mm
Temperature of Reading Cells
39±0.2°C
Light Source
LED, Light Emitting Diode
Wavelength (nm)
505 – 610 – 340
Optical path
1 cm
Display
7” TFT with capacitive touch screen
Connectivity
Ethernet
Video
HDMI
Interface
3xUSB
Weight
2.7 Kg approx.
Dimensions
240 (w) x 330 (d) x 155 (h) mm
Power supply
12 V DC – 3.5 A
Energy absorption
max. 45 Watts
Working Conditions
15-30°C (Rh 90% max withoutcondensation)
Storage conditions
08-38°C (Rh 95% max.)
Safety Workingconditions
15-40°C
Certifications
CE0123 Marking
In vitro diagnostic medical device intended to be used by health care operators and in the pharmacy by lay users.
The system is suitable for self-testing and complies with the requirements of the 98/79/EC Directive.
