A star is born

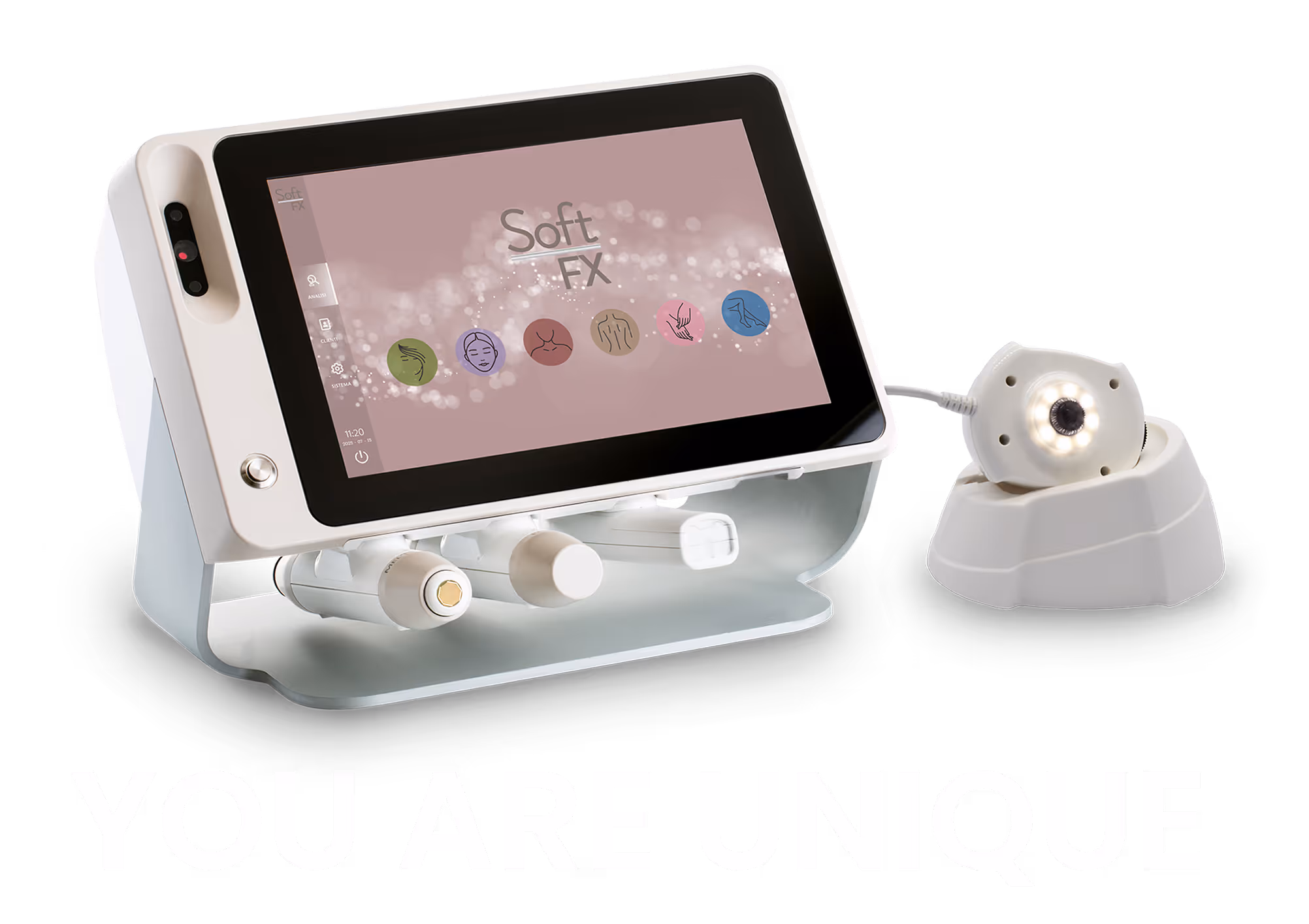

Discover the innovative and functional SoftFX skin analyzer designed to support skin care businesses and enhance professionalism, for all skin care operators.

The Soft FX provides a variety of exclusive features that meet the needs of professionals and skin care companies including the latest rapid analysis solutions, various consultations for different areas of the body, comparison of results and images before and after treatment and delivering results on smartphone, tablet or via email from device.

Soft FX is extremely intuitive and very user-friendly to use.

Watch the video

Selfie front-face camera feature

For targeted, personalized skincare

Camera

For brilliant visual imaging of wrinkles, pigmentation, texture, pores, keratin, redness, hair structure, hair density, hair diameter and dandruff

Completely wireless, rapid recharge probes

For real-time measurement of hydration, melanin, elasticity and pH

Clever brilliant High Definition 10.1 inch
full angle touch screen

Design compatto ed ergonomico

310(w)x170(d)x225(h) mm 3kg

Compact,fully stand-alone design

310(w)x170(d)x225(h) mm 3kg

Digital communication

Skin analysis report delivered to smartphone, tablet (ioS e Android) or via email from device

The most complete body analysis experience ever

HAIR

The most complete body analysis experience ever

COMPLEXION

The most complete body analysis experience ever

décolleté

The most complete body analysis experience ever

BODY

The most complete body analysis experience ever

HANDS

The most complete body analysis experience ever

LEGS

Exclusive multiple-use skin analysis

Rapid tests

Hydration– Melanin – pH – Elasticity – Sebum

Rapid tests with camera

Pigmentation – Wrinkles – Pores – Texture –Redness – Keratin – Hair Structure – Hair Density – Hair Diameter – Dandruff

Consultations

Check Up – Check Up Pro – Age Perfect – Age Perfect Pro – Phototype – Sun Protection – Scalp Focus - Décolleté Expert –Hands Beauty

Exclusive “Create your own consultation” feature

A full report is generated when testing is over

delivered on smartphone, tablet and email

Results

remove subjective interpretation

Comments and advice

support assessment

Product/Treatment recommendation

based on results delivered

Track trends and monitor progress over time

TECHNICAL SPECIFICATIONS

Technical specifications
Display
tft 10.1’’ with capacitive multi-touch screen
Full face camera
2592x1944 max resolution
auto focus
60° view angle
Connectivity
ethernet, wifi, wifi hotspot
the probes are connected to the central unit through bluetooth low energy connection, with exception to the usb microcamera
Internal storage
External storage
4GB
64GB
External monitor
HDMI
Interface
2xUSB
Weight
3kg
Dimensions
310 (w) x 170 (d) x 225 (h) mm
Power supply
12V DC – 5 A
Energy absorption
Max. 60 Watt
Working conditions
15 – 30 ° c (rh 5-85% without condensate)
Transport and storage
conditions
0 – 50 ° c (rh 5-85% without condensate)
Compliance
CE mark, UKCA mark
Certification
MET mark
Measurement  principle
Campo
Risoluzione
HYDRATION
(MEL-HYD FX)
capacitive
method
0-100 a.u.
1 a.u.
MELANIN
(MEL-HYD FX)
double wavelenght reflectance photometer (λ1=875nm, λ2=660nm)
0-100 a.u.
1 a.u.
pH (pH FX)
pH sensitive glass electrode
2-10
0.1
SEBUM
(TAPE FX)
computer vision processing of sebum-sensitive tape
0-100 a.u.
1 a.u.
ELASTICITY
(ELA FX)
stress/
deformation of skin by suction application
0-100 a.u.
1 a.u.
Image sensor
Magnification
Resolution
MICROCAMERA
(CAM FX)
¼ color cmos image sensor
two lenses available:
100x and 400x
1.3 MP – 1280x1024
